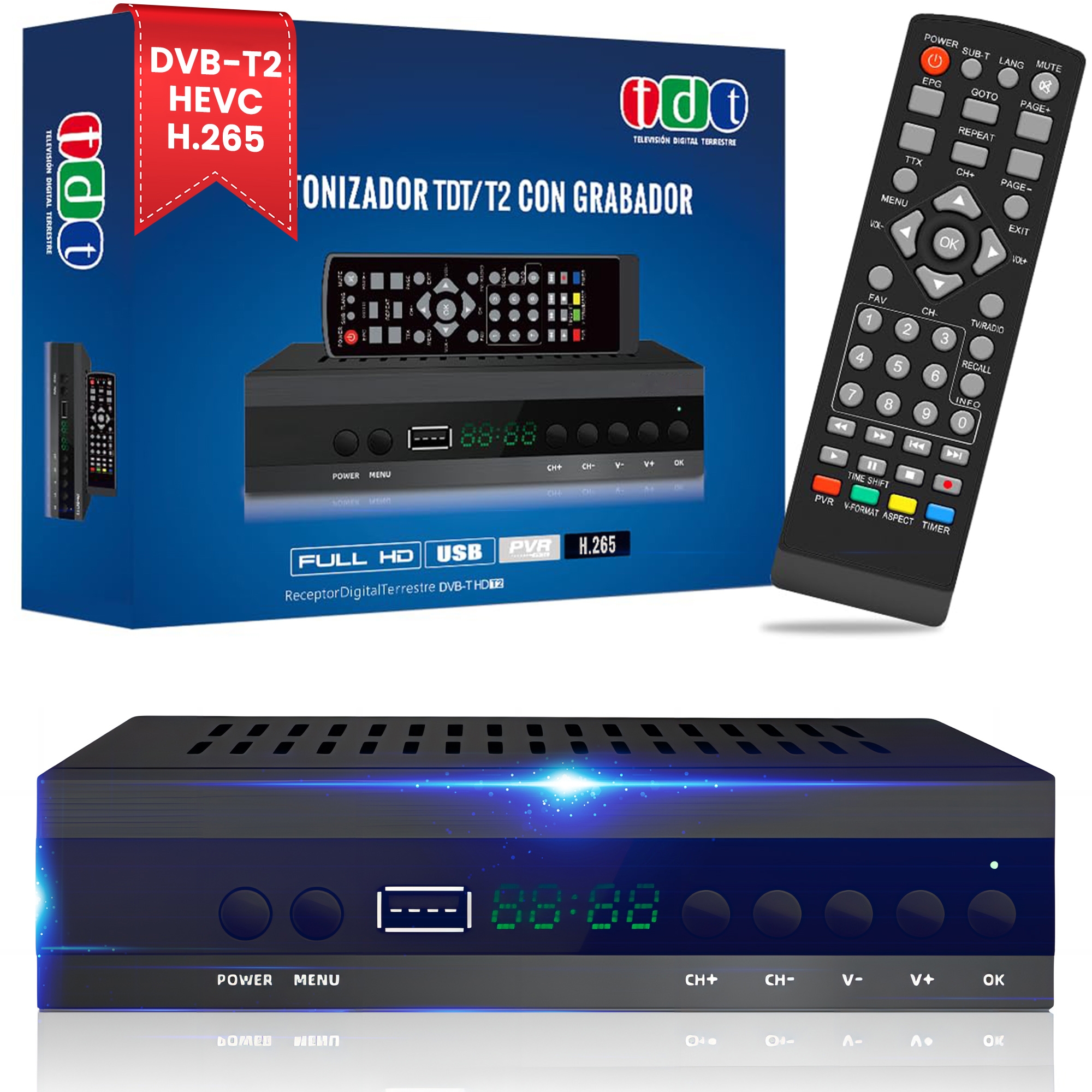

TDT/DVB-T2 Set Top Box Digital TV Tuner decoder HEVC H.265 Receiver

QR code
share
copy Link
Facebook
X
LinkedIn
P/N JD1
Chipset GX6702S5
Inquiry Now
DetailReview(0)Download

Software Features:


1.DVB-T2/DVB-T/DVBC compatible, support h.264 and h.265 Free to air channels

2.Chipset:   GX6702S5

3.The multi-standard video decoder supports MPEG2/4, H.264, H.265 10bit/60fps, AVS, AVS plus and JPEG/MJPEG HD video decoding. Patented video post-processing unit achieves satisfied deinterlacing and scaling effect

4.The processor based audio decoder supports MPEGI/II, MP3, Dolby Digital optional , Dolby Digital Plus optional , MPEG4 AAC, HE-AAC and DRA decoding

5. USB2.0 host support upgrade, PVR, time shifting and media play with U-Flash or HDD

6. Supports HDMI 1.4 (1080P)   Compatible with 576i/576p/720p/1080i/1080P video formats

7. Auto and manually scan all available TV and radio channels,Parental guidance locking

8. Supports HDMI output, scart   coaxial, RF in and output

9.Powerful and highly effective 7days EPG function and Logic Channel Number(LCN)

10.OSD language: multi-language. Such as English, Russia ,Czech, French, German, Italian, Portuguese, Spanish,   etc

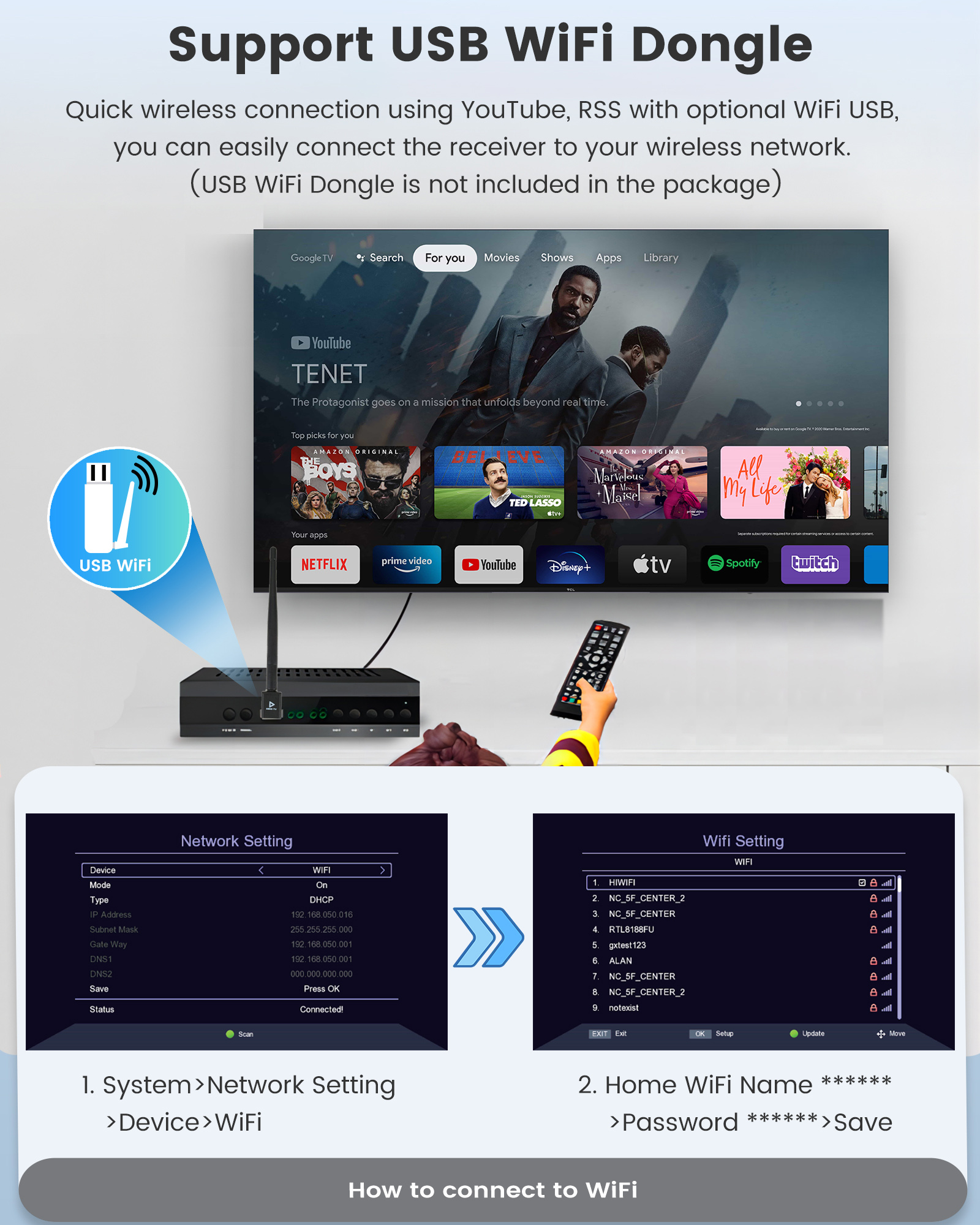

11. use wifi dongle to connect with wifi , and then play youtube and IPTV function to watch videos



Hardware
CPU: 32bit CK610M CPU with MMU , provides up to 1500 DMIPS

SDRAM: Embedded16 bit width, 64MB DDR2 SDRAM

FLASH: SPI flash

Demodulator Type: GX6702

TUNER:MXL608/850


Demodulation
Terrisal Receiver Standard: DVB-T2/T/C (EN 302 755/ EN 300 744/EN300 429)

Input RF Frequency:170-230, 470-862MHZ

Bandwidth:1.7MHz/ 5MHz/ 6MHz/ 7MHz/ 8MHz

All modulation mode supported: QPSK/QPSK/16QAM/64QAM/256QAM

FEC:1/2, 3/5,2/3, 3/4,4/5,5/6

All Guard Interval supported: 1/4,19/256,1/8,19/128,1/16,1/32,1/128

All FFT mode supported: 1k,2k,4k,8k,16k,32k

Input level:-83 - -5dBm

Support:Support Single and multiple PLPS


Video Decoder
H.265 video (HEVC/H.265), BP/MP/MP10/HP up to L4.1

H.264 video (ISO/IEC 14496-10), BP/MP/HP up to L4.1

MPEG-4 video (ISO/IEC 14496-2), SP/ASP up to L5

MPEG-2 video (ISO/IEC 13818-2), MP@HL


Audio Decoder
MPEG1 I/II, MP3 decoding,MPEG-4 AAC and AAC plus (HE-AACv1 and v2) decoding

2 channel audio DAC output, S/N is more than 90dB


Powerful Multimedia Features
Media Codec:avi. mpg, .dat, .vob, .div, .mov, .mkv, jpeg, .ts etc

Audio Codec:WMA,MP3,AAC (.wma,.mp3,m4a)

Photo Codec:JPEG, BMP, PNG

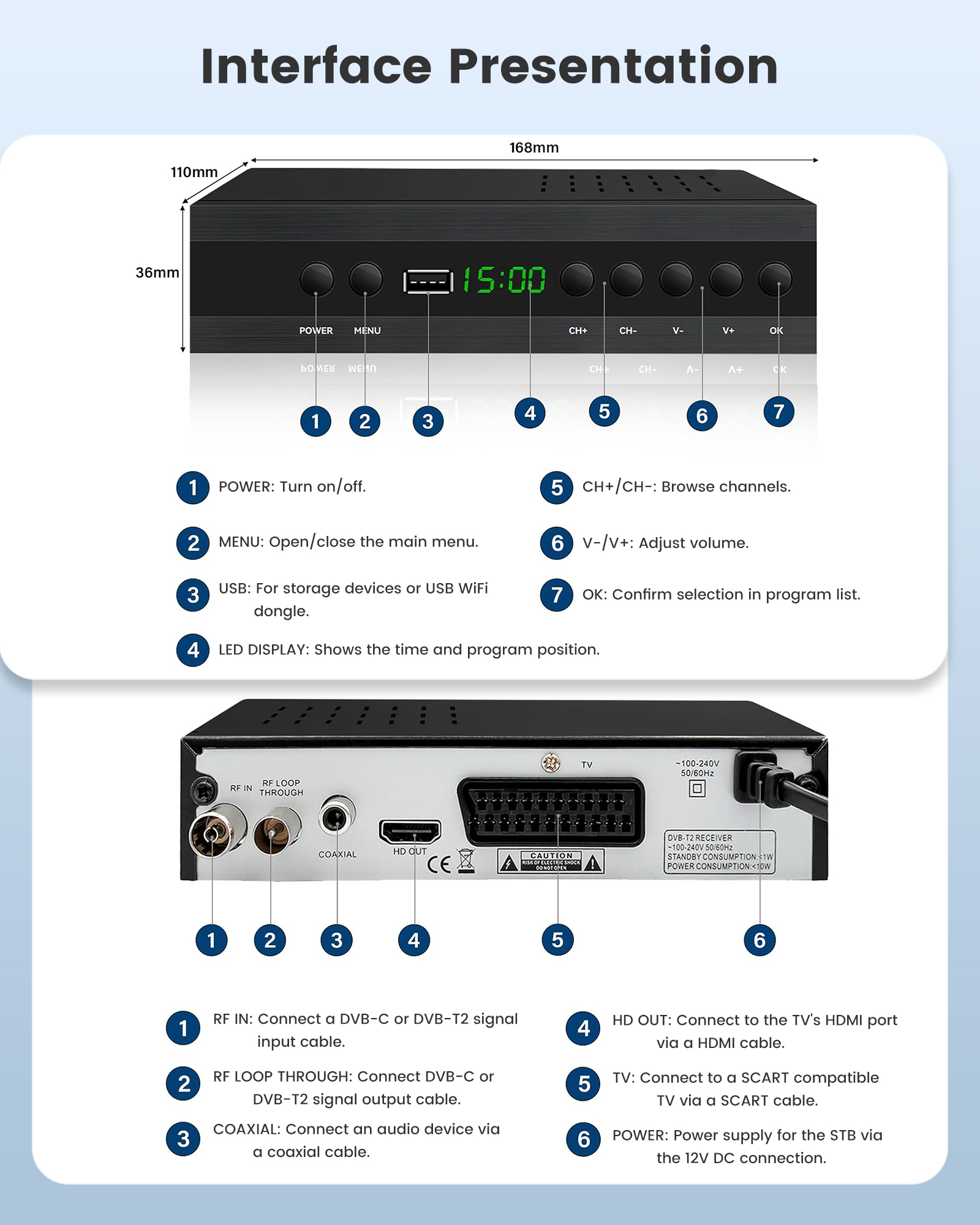

Front Panel
USB 2.0 Embedded One Host

4-digit LED display on front panel

red LED Standby,green LED Lock

Panel KEY, POWER, CH+ ,CH-

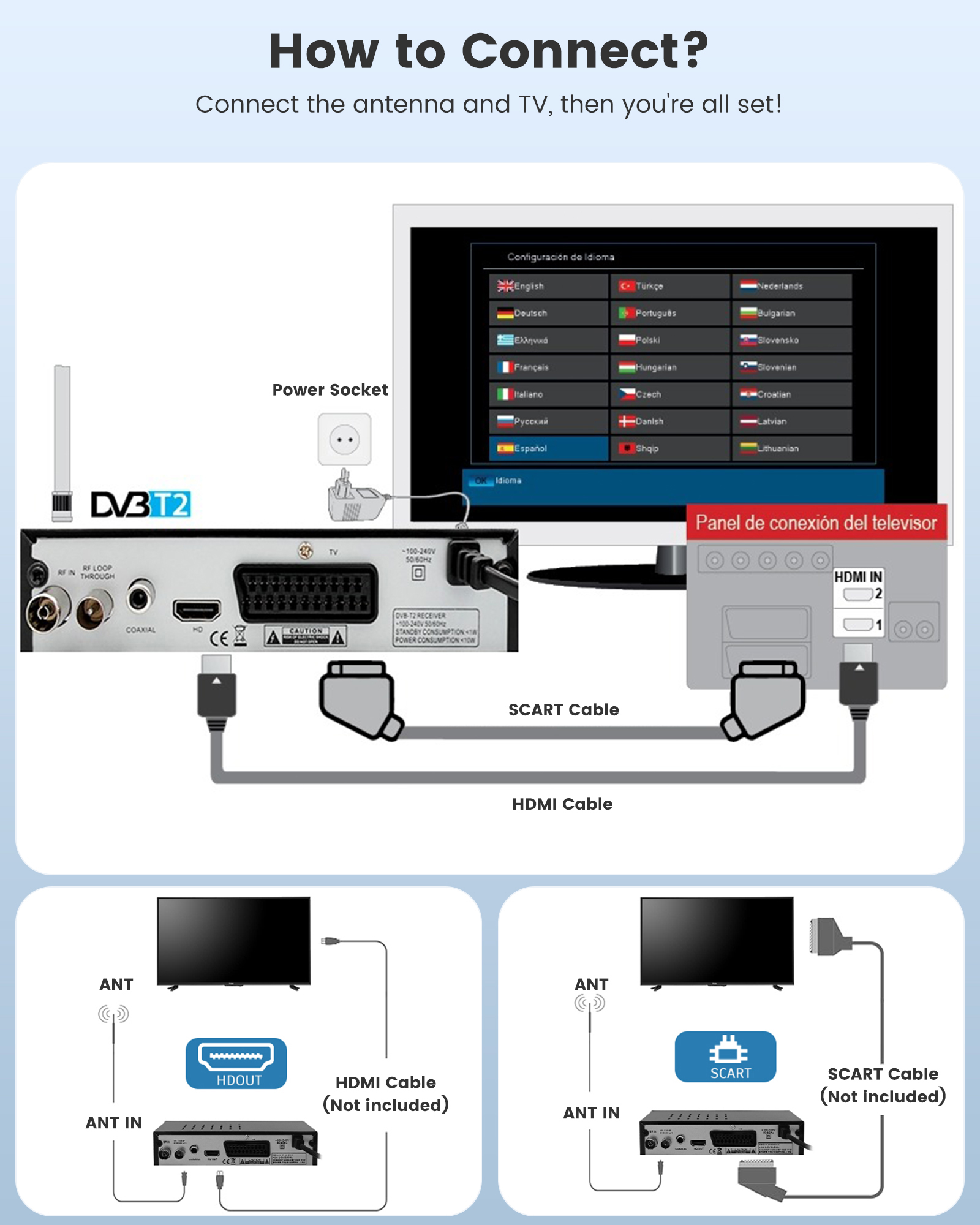

Rear Panel
Tuner RF input connector:IEC-162-2( Female)

Tuner RF Loop through connector:IEC-162-2( Male)

FULL HD V1.3/V1.4

scart Connector x1

Coaxial x1

Power AC 100~240V 50Hz/60Hz
